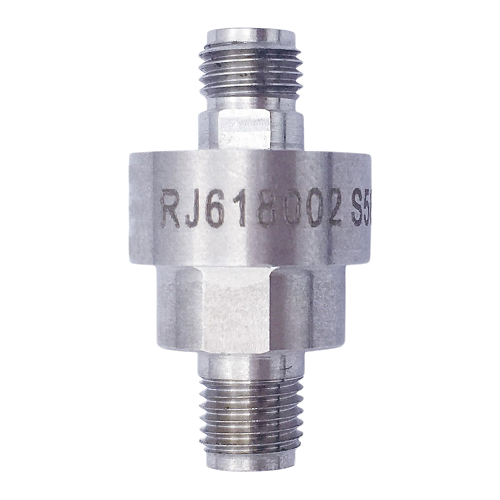

RF Rotary Joints RJ618002
2022-08-12 18:41:50 点击：
❶Features:*Single Channel Coaxial Rotary Joints
*Frequency: DC-18 GHz
*Average Power: 200 Watts
*VSWR: 1.35 max
*Insertion Loss: 0.5 dB max
*Connectors: SMA Female
*Lifetime: 0.5 Million Revolutions min
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:
*RJ618002 is a Single Channel Coaxial Rotary Joint, operating frequency at DC-18 GHz. The rotary joints have 200 Watts max of average power, rf rotary joints has a VSWR of 1.35 max and an insertion loss of 0.5 dB max. Yach.com's rotary joints have SMA Female connectors. Yach.com's RF rotary joints accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：RJ618002.pdf (点击右键可另存)
