RF Rotary Joints RJ151003
2022-08-12 18:40:28 点击：
❶Features:*Single Channel Waveguide Rotary Joints
*Frequency: 13.75-14.5 GHz
*Average Power: 1000 Watts
*VSWR: 1.2 max
*Insertion Loss: 0.2 dB max
*Ports: PBR 120
*Lifetime: 10 Million Revolutions min
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:

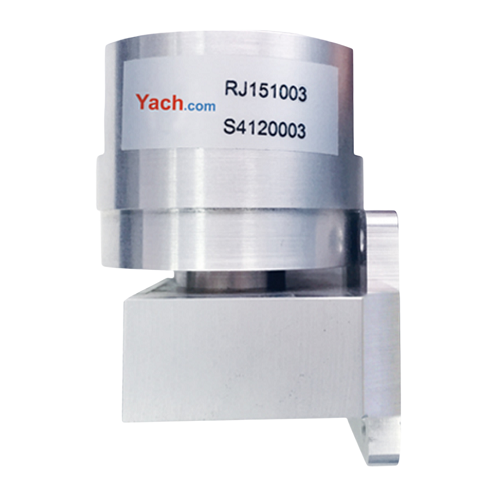

*RJ151003 is a Single Channel Waveguide Rotary Joint, operating frequency at 13.75-14.5 GHz. The rotary joints have 1000 Watts of average power, rf rotary joints has a VSWR of 1.2 max and an insertion loss of 0.2 dB max. Yach.com's rotary joints have PBR 120 Ports. Yach.com's RF rotary joints accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：RJ151003.pdf (点击右键可另存)
