RF Rotary Joints RJ518035
2022-08-12 18:43:13 点击：
❶Features:*Single Channel Coaxial Rotary Joints
*Frequency: DC-18 GHz
*Average Power: 200 Watts max
*VSWR: 1.22 max
*Insertion Loss: 0.2 dB max
*Connectors: N Female
*Lifetime: 5 Million Revolutions min
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:

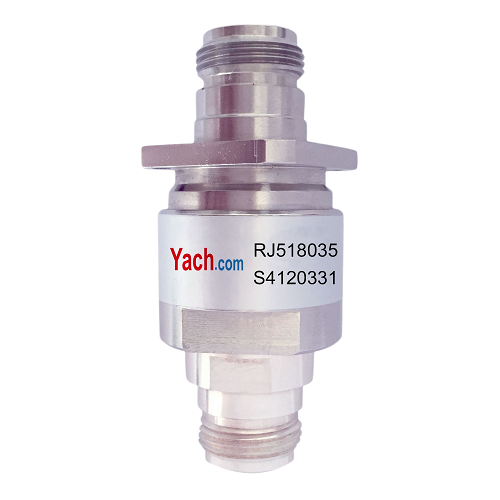

*RJ518035 is a Single Channel Coaxial Rotary Joint, operating frequency at DC-18 GHz. The rotary joints have 200 Watts max of average power, rf rotary joints has a VSWR of 1.22 max and an insertion loss of 0.2 dB max. Yach.com's rotary joints have N Female connectors. Yach.com's RF rotary joints accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
