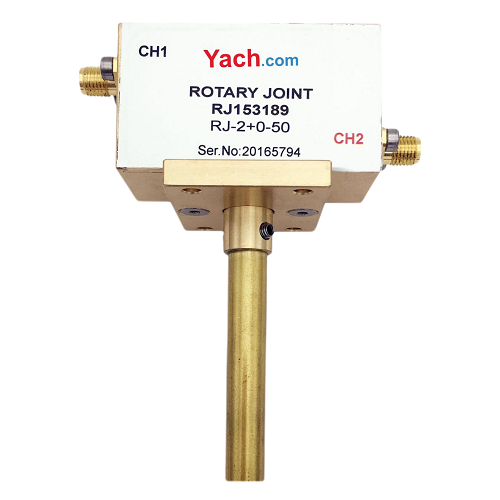

RF Rotary Joints RJ153189
2022-08-12 17:00:44 点击：
❶Features:*Dual Channels Rotary Joints
*CH1: DC~2.2 GHz
*CH2: DC ~2.2 GHz
*Peak Power: 500 Watts max
*Average Power: 5 Watts max
*VSWR: 2.0 max
*Insertion Loss: 2.5 dB max
*CH1: SMA 50 Ohm
*CH2: SMA 50 Ohm
*Lifetime: 2 Million Revolutions min
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:
*RJ153189 is a dual Channels Rotary Joints, operating frequency CH1: DC~2.2 GHz, CH2: DC ~2.2 GHz. The rotary joints have 5 Watts max of average power, rf rotary joints has a VSWR of 2.0 max and an insertion loss of 2.5 dB max. Yach.com's rotary joints have SMA 50 Ohm connectors for CH1 and CH2. Yach.com's RF rotary joints accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：RJ153189.pdf (点击右键可另存)
