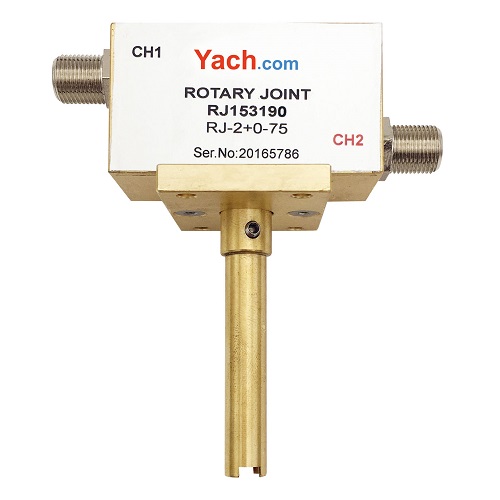

RF Rotary Joints RJ153190
2022-08-12 18:28:44 点击：
❶Features:*Dual Channels Rotary Joints
*CH1: DC~2.2 GHz
*CH2: DC ~2.2 GHz
*Peak Power: 500 Watts max
*Average Power: 5 Watts max
*VSWR: 2.0 max
*Insertion Loss: 2.5 dB max
*CH1: F 75 Ohm
*CH2: F 75 Ohm
*Lifetime: 2 Million Revolutions min
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:
*RJ153190 is a dual Channels Rotary Joints, operating frequency CH1: DC~2.2 GHz, CH2: DC ~2.2 GHz. The rotary joints have 5 Watts max of average power, rf rotary joints has a VSWR of 2.0 max and an insertion loss of 2.5 dB max. Yach.com's rotary joints have F 75 Ohm connectors for CH1 and CH2. Yach.com's RF rotary joints accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：RJ153190.pdf (点击右键可另存)
