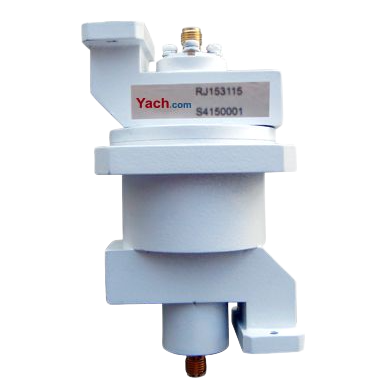

RF Rotary Joints RJ153115
2022-08-12 16:58:22 点击：
❶Features:*Dual Channels Rotary Joints
*CH1: 13.75 GHz~14.5 GHz
*CH2: DC ~4.0 GHz
*Peak Power: 5K Watts max
*Average Power: 200 Watts max
*VSWR: 1.25 min
*Insertion Loss: 0.25 dB min
*CH1: UBR120 Special Flange
*CH2: SMA (Female)
*Lifetime: 2 Million Revolutions min
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:
*RJ153115 is a dual Channels Rotary Joints, operating frequency CH1: 13.75 GHz~14.5 GHz, CH2: DC ~4.0 GHz. The rotary joints have 200 Watts max of average power, rf rotary joints has a VSWR of 1.25 min and an insertion loss of 0.25 dB min. Yach.com's rotary joints have dual channels UBR120 Special Flangeinterfaces for CH1, the rf rotary joints have SMA female connectors for CH2. Yach.com's RF rotary joints accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：RJ153115.pdf (点击右键可另存)
