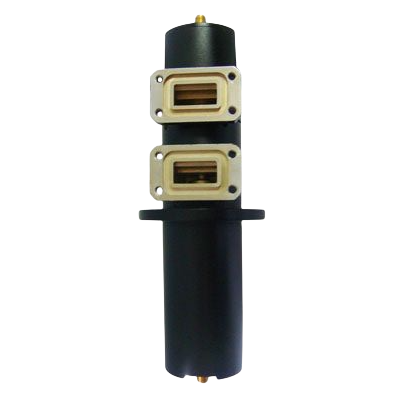

RF Rotary Joints RJ153175
2022-08-12 16:56:58 点击：
❶Features:*3 Channels Rotary Joints
*CH1: 13.5 GHz~14.6 GHz
*CH2: DC ~13.0 GHz
*CH3: DC~4.5 GHz
*Peak Power: 20K Watts max
*Average Power: 500 Watts max
*VSWR: 1.2 min
*Insertion Loss: 0.3 dB min
*CH1: UBR120 Flange
*CH2-CH3: SMA (Female)
*Lifetime: 2 Million Revolutions min
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:
*RJ153175 is a 3 Channels Rotary Joints, operating frequency CH1: 13.5 GHz~14.6 GHz. The rotary joints have 500 Watts max of average power, rf rotary joints has a VSWR of 1.2 min and an insertion loss of 0.3 dB min. Yach.com's rotary joints have a UBR120 Flange interfaces for CH1, the rf rotary joints have SMA female connectors for CH2-CH3. Yach.com's RF rotary joints accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：RJ153175.pdf (点击右键可另存)
