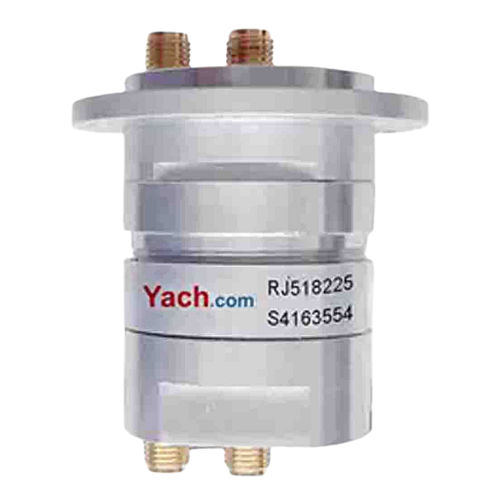

RF Rotary Joints RJ518225
2022-08-12 18:33:50 点击：
❶Features:*Dual Channels Rotary Joints
*Impendance: 50 Ohm
*CH1: DC~5 GHz
*CH2: DC~5 GHz
*Peak Power: 1500 Watts max
*Average Power: 60 Watts max
*VSWR: 1.5 max
*Insertion Loss: 0.45 dB max
*CH1: SMA Female
*CH2: SMA Female
*Lifetime: 10 Million Revolutions min
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:
*RJ518225 is a dual Channels Rotary Joints, operating frequency CH1: DC~5 GHz, CH2: DC ~5 GHz. The rotary joints have 60 Watts max of average power, rf rotary joints has a VSWR of 1.5 max and an insertion loss of 0.45 dB max. Yach.com's rotary joints have SMA Female connectors for CH1 and CH2. Yach.com's RF rotary joints accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：RJ518225.pdf (点击右键可另存)
