Power Amplifiers PA8375248
2022-05-31 15:35:57 点击：
❶Features:*Ka Band Power Amplifier
*Frequency: 23 GHz to 31 GHz
*Gain: 36 dB min
*VSWR: 2.0 typ
*P1dB: 28 dBm typ
*Supply: +6~15 VDC, 0.5~1 A
*Input/Output Connector: 2.92 Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Electronic Warfare
*Wireless Systems
*Test Instrumentation
*Communication Systems
*Power Amplifier
*RF Front Ends
*Low Noise Amplifiers
*Microwave Radio Systems
❸Description:

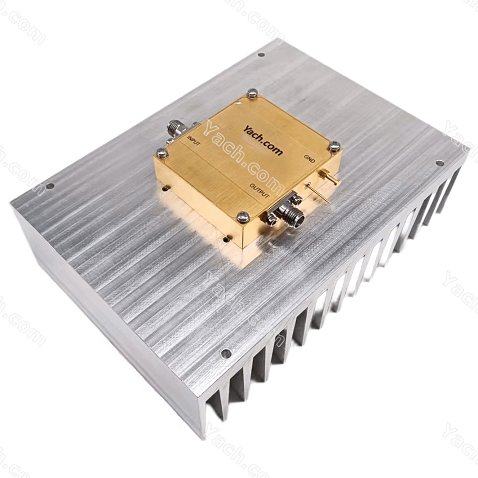

*PA8375248 is a broadband coaxial power amplifier, operating frequency in the 23 to 31 GHz. The amplifiers offer 36 dB min signal gain, with the gain flatness of ±2 dB typ, the power amplifier has a VSWR of 2.0 typ. Yach.com's broadband power amplifier PA8375248 is rated P1dB 28 dBm typ output power, this amplifier needs a single positive DC supply +6~15 VDC, 0.5~1 A, the amplifier has 2.92 female connectors for input/output ports. Yach.com's RF power amplifiers accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：PA8375248.pdf (点击右键可另存)
