Power Amplifiers PA8375138
2022-05-31 15:35:58 点击：
❶Features:*Frequency: 1 GHz to 40 GHz
*Gain: 25 dB min
*VSWR: 3.0 max
*P1dB: 30 dBm typ
*Supply: AC 110-240V/47-63Hz, 20 A
*Input/Output Connector: 2.92 Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Electronic Warfare
*Wireless Systems
*Test Instrumentation
*Communication Systems
*Power Amplifier
*RF Front Ends
*Low Noise Amplifiers
*Microwave Radio Systems
❸Description:

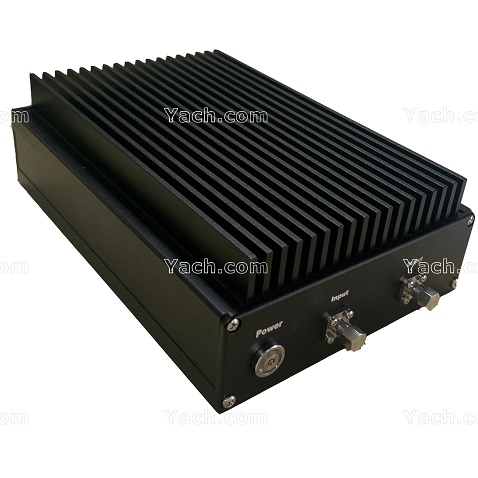

*PA8375138 is a broadband coaxial power amplifier, operating frequency in the 1 to 40 GHz. The amplifiers offer 25 dB typ signal gain, with the gain flatness of ±3 dB typ, the power amplifier has a VSWR of 3.0 max. Yach.com's broadband power amplifier PA8375138 is rated P1dB 30 dBm typ output power, this amplifier needs AC supply 110-240V/47-63Hz, 20 A, the amplifier has 2.92 female connectors for input/output ports. Yach.com's RF power amplifiers accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：PA8375138.pdf (点击右键可另存)
