Power Amplifier PA8375131
2022-06-02 18:34:14 点击：
❶Features:*Ka Band RF Power Amplifier
*Frequency: 18 GHz to 40 GHz
*Gain: 35 dB typ
*VSWR: 2.2 max
*Psat: 29 dBm typ
*Supply: 12 VDC, 900 mA max
*Input/Output Connector: 2.92 Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Electronic Warfare
*Wireless Systems
*Test Instrumentation
*Communication Systems
*Power Amplifier
*RF Front Ends
*Low Noise Amplifiers
*Microwave Radio Systems
❸Description:

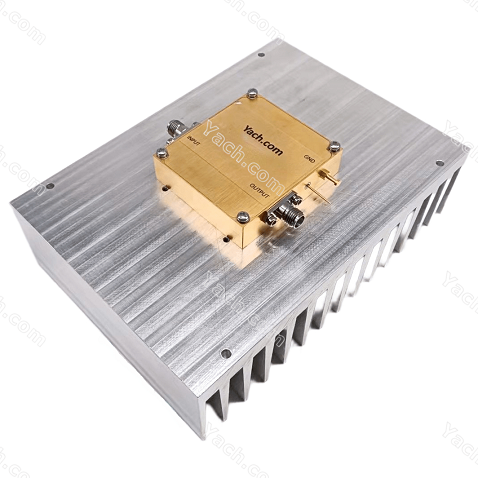

*PA8375131 is a broadband coaxial power amplifier, operating frequency in the 18 to 40 GHz. The amplifiers offer 35 dB typ signal gain, with the gain flatness of ±3.5 dB max, the power amplifier has a VSWR of 2.2 max. Yach.com's broadband power amplifier PA8375131 is rated Psat 29 dBm typ output power, this amplifier needs a supply 12 VDC, 900 mA max, the amplifier has 2.92 female connectors for input/output ports. Yach.com's RF power amplifiers accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：PA8375131.pdf (点击右键可另存)
