Low Noise Amplifier LNA824479
2022-06-02 18:26:01 点击：
❶Features:*X Band Coaxial Low Noise Amplifier
*Frequency: 6 GHz to 12 GHz
*Noise Figure: 2.5 dB max
*VSWR: 1.5 typ
*Output Power (P1dB): 25 dBm min
*Supply: +12~+15 VDC, 300 mA typ
*Input/Output Connector: SMA Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Telecom Infrastructure
*Microwave Radio Systems
*Low Noise Amplifier
*General Purpose Amplification
*Gain Block
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:

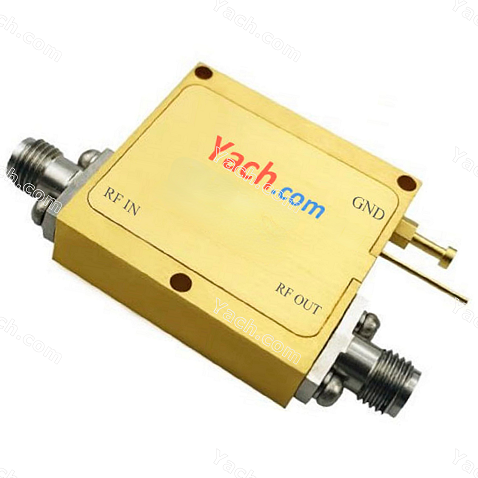

*LNA824479 is a X band coaxial low noise amplifier (LNA), operating frequency in the 6 to 12 GHz. The low noise amplifier offers 2.5 dB max noise figure, the low noise amplifier has a VSWR of 1.5 typ. Yach.com's low noise amplifier LNA824479 is rated 25 dBm min output power (P1dB), this low noise amplifier needs a single positive DC supply +12~15 Volts 300 mA typ, the low noise amplifier has SMA female connectors for input/output ports. Yach.com's RF low noise amplifiers (LNA) accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：LNA824479.pdf (点击右键可另存)
