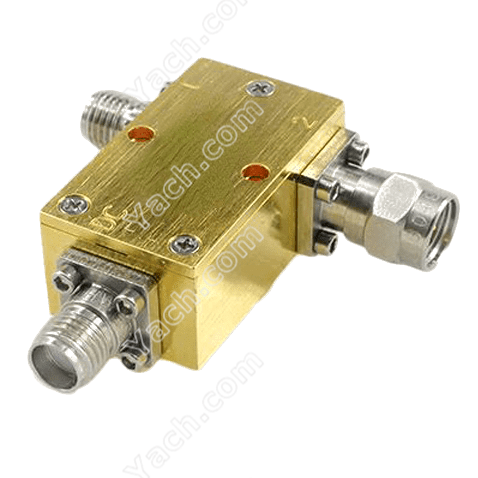

Bias Tees BT523636
2022-05-09 11:24:30 点击：
❶Features:
*750 KHz to 12 GHz
*500 mA & 2000 VDC
*VSWR＜2.0
*Insertion Loss＜3.0 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
750 KHz to 12 GHz N Bias Tees, 500 mA & 2000 VDC BT523636 bias tee (also called bias T) has a N connector RF port that is female gender. This Yach female N bias tee design is rated for a minimum frequency of 750 KHz and a maximum frequency of 12 GHz. This N bias tee / T is rated for a max. DC voltage of 2000 Volts and a max. current of 500 mA. The BT523636 bias T with N connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach's RF bias tee accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
*750 KHz to 12 GHz
*500 mA & 2000 VDC
*VSWR＜2.0
*Insertion Loss＜3.0 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
750 KHz to 12 GHz N Bias Tees, 500 mA & 2000 VDC BT523636 bias tee (also called bias T) has a N connector RF port that is female gender. This Yach female N bias tee design is rated for a minimum frequency of 750 KHz and a maximum frequency of 12 GHz. This N bias tee / T is rated for a max. DC voltage of 2000 Volts and a max. current of 500 mA. The BT523636 bias T with N connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach's RF bias tee accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：BT523636.pdf (点击右键可另存)
