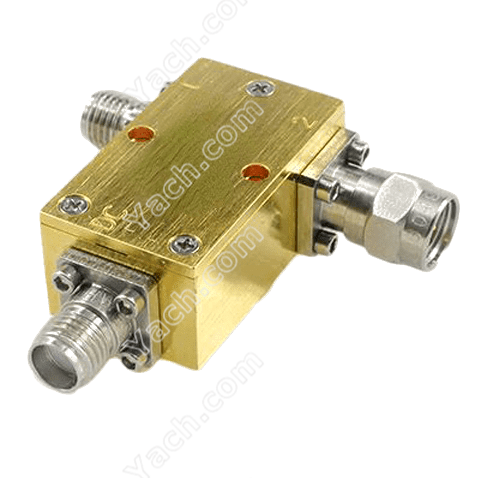

Bias Tees BT523632
2022-05-09 11:33:21 点击：
❶Features:
*100 MHz to 26.5 GHz
*500 mA & 150 VDC
*VSWR＜2.0
*Insertion Loss＜2.0 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
100 MHz to 26.5 GHz SMA Bias Tees, 500 mA & 150 VDC BT523632 bias tees (also called bias T) have a SMA connector RF port that is female gender. This Yach.com female SMA bias tees design are rated for a minimum frequency of 30 KHz and a maximum frequency of 26.5 GHz. This SMA bias tees / T is rated for a max. DC voltage of 150 Volts and a max. current of 500 mA. The BT523632 bias T with SMA connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tees accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
*100 MHz to 26.5 GHz
*500 mA & 150 VDC
*VSWR＜2.0
*Insertion Loss＜2.0 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
100 MHz to 26.5 GHz SMA Bias Tees, 500 mA & 150 VDC BT523632 bias tees (also called bias T) have a SMA connector RF port that is female gender. This Yach.com female SMA bias tees design are rated for a minimum frequency of 30 KHz and a maximum frequency of 26.5 GHz. This SMA bias tees / T is rated for a max. DC voltage of 150 Volts and a max. current of 500 mA. The BT523632 bias T with SMA connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tees accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：BT523632.pdf (点击右键可另存)
