Bias Tees BT523616
2022-05-09 11:32:09 点击：
❶Features:
*50 KHz to 20 GHz
*750 mA & 25 VDC
*VSWR＜1.8
*Insertion Loss＜1.5 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:

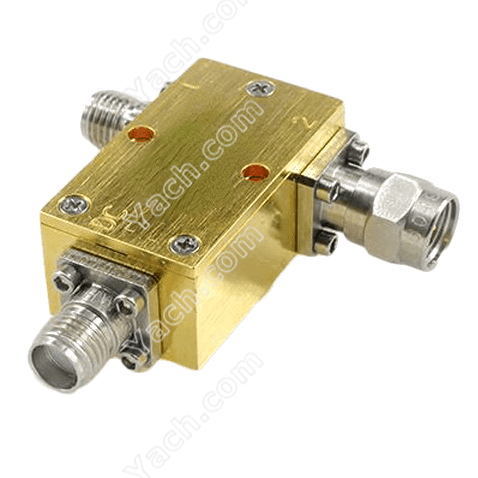

50 KHz to 20 GHz SMA Bias Tees, 750 mA & 25 VDC BT523616 bias tees (also called bias T) have a SMA connector RF port that is female gender. This Yach.com female SMA bias tees design are rated for a minimum frequency of 50 KHz and a maximum frequency of 20 GHz. This SMA bias tees / T is rated for a max. DC voltage of 25 Volts and a max. current of 750 mA. The BT523616 bias T with SMA connector series for RF port is designed with a maximum VSWR of 1.8:1 and a RF to bias isolation typical of 30 dB. Yach's RF bias tees accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
*50 KHz to 20 GHz
*750 mA & 25 VDC
*VSWR＜1.8
*Insertion Loss＜1.5 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
50 KHz to 20 GHz SMA Bias Tees, 750 mA & 25 VDC BT523616 bias tees (also called bias T) have a SMA connector RF port that is female gender. This Yach.com female SMA bias tees design are rated for a minimum frequency of 50 KHz and a maximum frequency of 20 GHz. This SMA bias tees / T is rated for a max. DC voltage of 25 Volts and a max. current of 750 mA. The BT523616 bias T with SMA connector series for RF port is designed with a maximum VSWR of 1.8:1 and a RF to bias isolation typical of 30 dB. Yach's RF bias tees accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：BT523616.pdf (点击右键可另存)
