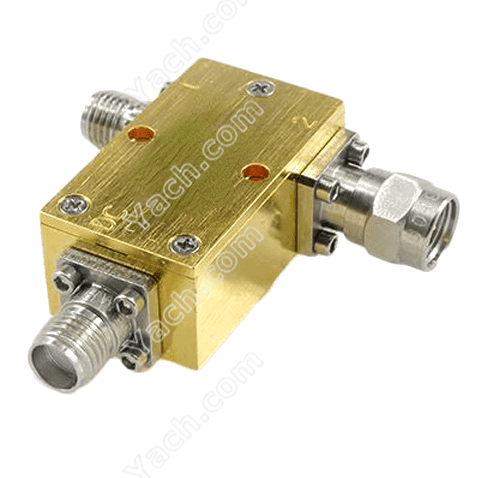

Bias Tees BT523629
2022-05-09 11:21:40 点击：
❶Features:
*10 MHz to 6 GHz
*2500 mA & 100 VDC
*VSWR＜1.5
*Insertion Loss＜1.25 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
10 MHz to 6 GHz N Bias Tees, 2500 mA & 100 VDC BT523629 bias tees (also called bias T) have a N connector RF port that is female gender. This Yach.com’s female N bias tees design is rated for a minimum frequency of 10 MHz and a maximum frequency of 6 GHz. This N bias tee / T is rated for a max. DC voltage of 100 Volts and a max. current of 2500 mA. The BT523629 bias T with N connector series for RF port is designed with a maximum VSWR of 1.5:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tee accept customization. Common models are in stock, the fastest delivery on the same day. Welcome to your inquires!
*10 MHz to 6 GHz
*2500 mA & 100 VDC
*VSWR＜1.5
*Insertion Loss＜1.25 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
10 MHz to 6 GHz N Bias Tees, 2500 mA & 100 VDC BT523629 bias tees (also called bias T) have a N connector RF port that is female gender. This Yach.com’s female N bias tees design is rated for a minimum frequency of 10 MHz and a maximum frequency of 6 GHz. This N bias tee / T is rated for a max. DC voltage of 100 Volts and a max. current of 2500 mA. The BT523629 bias T with N connector series for RF port is designed with a maximum VSWR of 1.5:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tee accept customization. Common models are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：BT523629.pdf (点击右键可另存)
