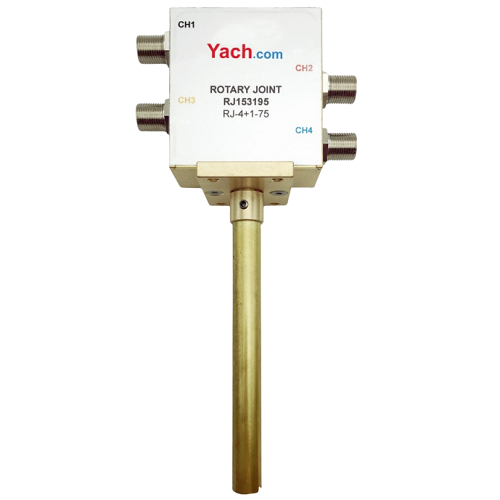

RF Rotary Joints RJ153195
2022-08-12 16:52:04 点击：
❶Features:*4 Channels Rotary Joints
*Style: L
*Frequency Range: DC to 2.2 GHz
*Peak Power: 500 Watts max
*Average Power: 5 Watts
*VSWR: 2.0 max
*Insertion Loss: 2.5 dB max
*CH1-CH4 Interface: F (75 Ohms)
*Lifetime: 2 Million Revolutions min
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:
*RJ153195 is a 4 Channels Rotary Joints, operating frequency in the DC to 2.2 GHz. The rotary joints have 5 Watts of average power, rf rotary joints has a VSWR of 2.0 max and an insertion loss of 2.5 dB max. Yach.com's rotary joints have 4 channels F (75 Ohms) interfaces for CH1-CH4. Yach.com's RF rotary joints accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：RJ153195.pdf (点击右键可另存)
