Power Amplifiers PA8375187
2022-05-29 22:56:48 点击：
❶Features:*Frequency: 800 MHz to 20 GHz
*Gain: 35 dB typ
*VSWR: 2.0 max
*P1dB: 28 dBm min
*Supply: +24 V, 1400 mA typ
*Input/Output Connector: SMA Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Electronic Warfare
*Wireless Systems
*Test Instrumentation
*Communication Systems
*Power Amplifier
*RF Front Ends
*Low Noise Amplifiers
*Microwave Radio Systems
❸Description:

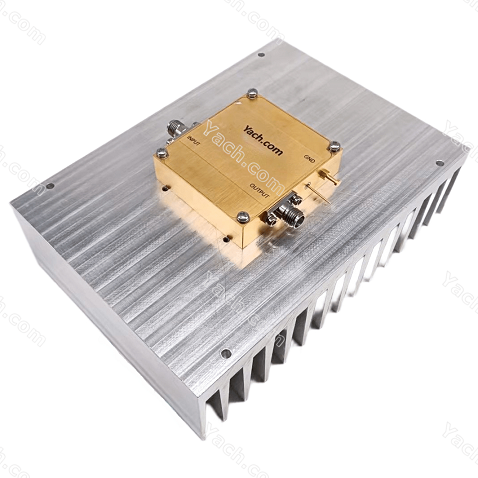

*PA8375187 is a broadband coaxial power amplifier, operating frequency in the 0.8 to 20 GHz. The amplifiers offer 35 dB typ signal gain, with the gain flatness of ±3 dB max, the power amplifier has a VSWR of 2.0 max. Yach.com's broadband power amplifier PA8375187 is rated P1dB 28 dBm min output power, this amplifier needs a single positive DC supply +24 Volts 1400 mA max, the amplifier has SMA female connectors for input/output ports. Yach.com's RF power amplifiers accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：PA8375187.pdf (点击右键可另存)
