PIN Diode Switches SW517181
2022-05-24 19:04:33 点击：
❶Features:*Frequency: 800 MHz to 6 GHz
*Insertion Loss: 1.5 dB max
*VSWR: 1.5 max
*RF Input Power: 30 dBm max
*Switching Time: 100 ns max
*Input/Output Connector: SMA Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Electronic Warfare
*Wireless Systems
*Test Instrumentation
*Communication Systems
*Telecom Infrastructure
*Microwave Radio Systems
❸Description:

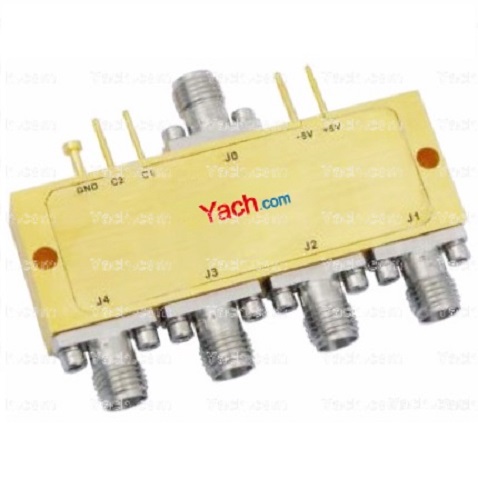

*SW517181 PIN diode switch from Yach.com is an Absorptive switch. this RF Absorptive PIN diode switch uses SMA connectors at 50 Ohm. This SMA PIN diode Absorptive switch has a minimum frequency of 800 MHz and a maximum frequency of 6 GHz. The Yach.com PIN diode Absorptive RF switch is rated at a switching speed of 100 ns and a maximum RF input power of 1.0 Watt (+30 dBm ).
Insertion loss maximum of this SMA Absorptive switch is 1.5 dB with an isolation minimum of 60 dB. Absorptive PIN diode radio frequency switch SW517181 is one of our RF (radio freuency), microwave and millimeter wave components from Yach.com, accepting customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：SW517181.pdf (点击右键可另存)
