PIN Diode Switches SW516169
2022-05-17 11:16:39 点击：
❶Features:*Frequency: 1 GHz to 40 GHz
*Insertion Loss: 4.5 dB typ
*VSWR: 2.5 max
*RF Input Power: 23 dBm
*Switching Time: 50 ns
*Input/Output Connector: SMA Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Electronic Warfare
*Wireless Systems
*Test Instrumentation
*Communication Systems
*Telecom Infrastructure
*Microwave Radio Systems
❸Description:

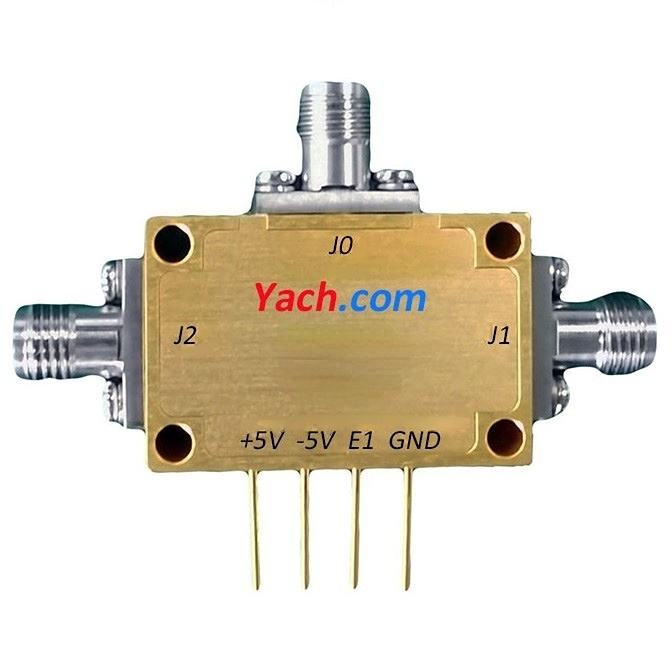

*SW516169 PIN diode switch from Yach.com is an Absorptive switch. this RF Absorptive PIN diode switch uses 2.92mm connectors at 50 Ohm. This SMA PIN diode Absorptive switch has a minimum frequency of 1 GHz and a maximum frequency of 40 GHz. The Yach.com PIN diode Absorptive RF switch is rated at a switching speed of 50 ns and a maximum RF input power of 0.2 Watt (+23 dBm ).
Insertion loss maximum of this 2.92mm Absorptive switch is 5.5 dB with an isolation minimum of 45 dB. Absorptive PIN diode radio frequency switch SW516169 is one of our RF (radio freuency), microwave and millimeter wave components from Yach.com, accepting customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：SW516169.pdf (点击右键可另存)
