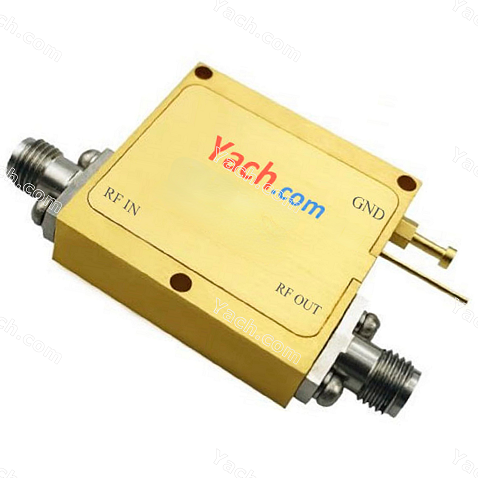

Low Noise Amplifier LNA824488
2022-06-06 10:44:07 点击：
❶Features:*X Band Coaxial Low Noise Amplifier
*Frequency: 8 GHz to 12 GHz
*Noise Figure: 0.9 dB typ
*VSWR: 2.0 max
*Output Power (P1dB): 12 dBm typ
*Supply: +12~15 V, 250 mA max
*Input/Output Connector: SMA Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Telecom Infrastructure
*Microwave Radio Systems
*Low Noise Amplifier
*General Purpose Amplification
*Gain Block
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:
*LNA824488 is a X band coaxial low noise amplifier (LNA), operating frequency in the 8 to 12 GHz. The low noise amplifier offers 0.9 dB typ noise figure, the low noise amplifier has a VSWR of 2.0 max. Yach.com's low noise amplifier LNA824488 is rated 12 dBm typ output power (P1dB), this low noise amplifier needs a single positive DC supply +12~15 Volts 250 mA max, the low noise amplifier has SMA female connectors for input/output ports. Yach.com's RF low noise amplifiers (LNA) accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：LNA824488.pdf (点击右键可另存)
