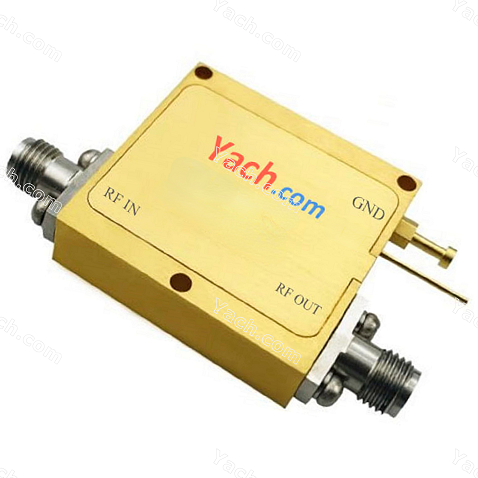

Low Noise Amplifier LNA824448
2022-05-30 12:20:40 点击：
❶Features:*L Band Coaxial Low Noise Amplifier
*Frequency: 0.01 GHz to 1 GHz
*Noise Figure: 1.5 dB typ
*VSWR: 2.0 max
*Output Power (Psat): 19 dBm typ
*Supply: +12 V, 150 mA max
*Input/Output Connector: SMA Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Telecom Infrastructure
*Microwave Radio Systems
*Low Noise Amplifier
*General Purpose Amplification
*Gain Block
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:
*LNA824448 is a L band coaxial low noise amplifier (LNA), operating frequency in the 0.01 to 1 GHz. The low noise amplifier offers 1.5 dB typ noise figure, the low noise amplifier has a VSWR of 2.0 max. Yach.com's low noise amplifier LNA824448 is rated 19 dBm typ output power (Psat), this low noise amplifier needs a single positive DC supply +12 Volts 150 mA max, the low noise amplifier has SMA female connectors for input/output ports. Yach.com's RF low noise amplifiers (LNA) accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：LNA824448.pdf (点击右键可另存)
