Low Noise Amplifier LNA775141
2022-05-31 14:55:35 点击：
❶Features:*C Band Coaxial Low Noise Amplifier
*Frequency: 2 GHz to 6 GHz
*Noise Figure: 4 dB typ
*VSWR: 2.0 typ
*Output Power (Psat): 18 dBm typ
*Supply: +12 V, 250 mA typ
*Input/Output Connector: SMA Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Telecom Infrastructure
*Microwave Radio Systems
*Low Noise Amplifier
*General Purpose Amplification
*Gain Block
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications
❸Description:

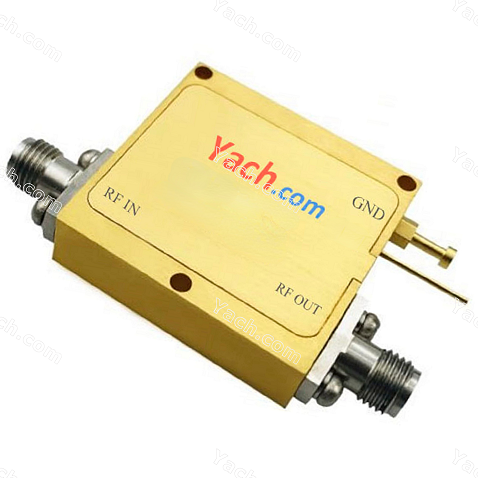

*LNA775141 is a C band coaxial low noise amplifier (LNA), operating frequency in the 2 to 6 GHz. The low noise amplifier offers 4 dB typ noise figure, the low noise amplifier has a VSWR of 2.0 typ. Yach.com's low noise amplifier LNA775141 is rated 18 dBm typ output power (Psat), this low noise amplifier needs a single positive DC supply +12 Volts 250 mA typ, the low noise amplifier has SMA female connectors for input/output ports. Yach.com's RF low noise amplifiers (LNA) accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：LNA775141.pdf (点击右键可另存)
