Cable Assemblies TC522135
2022-08-11 17:18:01 点击：
❶Features:*Phase & Amplitude Stable Coax Cable
*Frequency: DC to 110 GHz
*Cutoff Frequency: 128 GHz
*Impedance: 50 Ω
*Velocity of Propagation: 80 %
*Shielding Effectiveness: 90 dB Min
*Voltage Power: 400 VDC
*Static Bend Radius: 8 mm
*Dynamic Bend Radius: 15 mm
*Weight: 0.0054 Kg/m
*Installation&Operating Temperature: -55°C~+125°C
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Telecom Infrastructure
*Microwave Radio Systems
*Test Instrumentation
*Military & Space
*Communication Systems
*Satellite Communications
*Wireless Communications

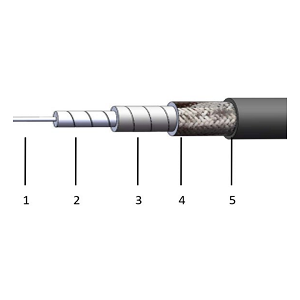

❸Description:
*TC522135 is a phase & amplitude stable coax cable, impedance 50 Ω, operating frequency in the DC to 110 GHz. The cutoff frequency is 128 GHz, the velocity of propagation is 80%. Yach.com's coax cable TC522135 is 90 dB min of shielding effectiveness, 400 VDC of voltage power, 8 mm of static bend radius. 15 mm of dynamic bend radius. Yach.com's RF coax testing cable accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：TC522135.pdf (点击右键可另存)
