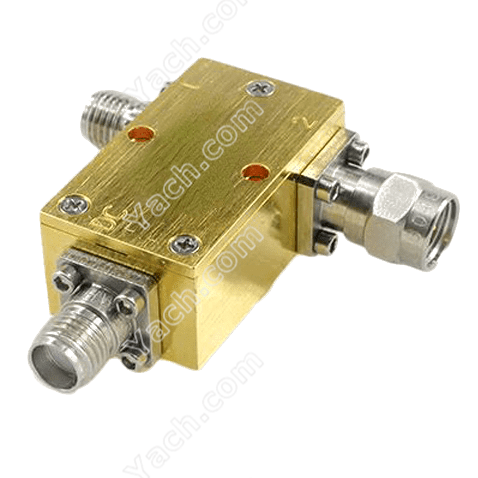

Bias Tees BT523633
2022-05-09 11:42:53 点击：
❶Features:
*50 HKz to 50 GHz
*2000 mA & 100 VDC
*VSWR＜2.0
*Insertion Loss＜3.0 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
50 KHz to 50 GHz 2.4mm Bias Tees, 2000 mA & 100 VDC BT523633 bias tees (also called bias T) have a 2.4mm connector RF port that are female gender. This Yach.com female 2.4mm bias tees design is rated for a minimum frequency of 50 KHz and a maximum frequency of 50 GHz. This 2.4mm bias tees / T is rated for a max. DC voltage of 100 Volts and a max. current of 2000 mA. The BT523633 bias T with 2.4mm connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tees accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
*50 HKz to 50 GHz
*2000 mA & 100 VDC
*VSWR＜2.0
*Insertion Loss＜3.0 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
50 KHz to 50 GHz 2.4mm Bias Tees, 2000 mA & 100 VDC BT523633 bias tees (also called bias T) have a 2.4mm connector RF port that are female gender. This Yach.com female 2.4mm bias tees design is rated for a minimum frequency of 50 KHz and a maximum frequency of 50 GHz. This 2.4mm bias tees / T is rated for a max. DC voltage of 100 Volts and a max. current of 2000 mA. The BT523633 bias T with 2.4mm connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tees accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：BT523633.pdf (点击右键可另存)
