Bias Tees BT523630
2022-05-09 11:28:41 点击：
❶Features:
*50 KHz to 18 GHz
*500 mA & 200 VDC
*VSWR＜2.0
*Insertion Loss＜1.8 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:

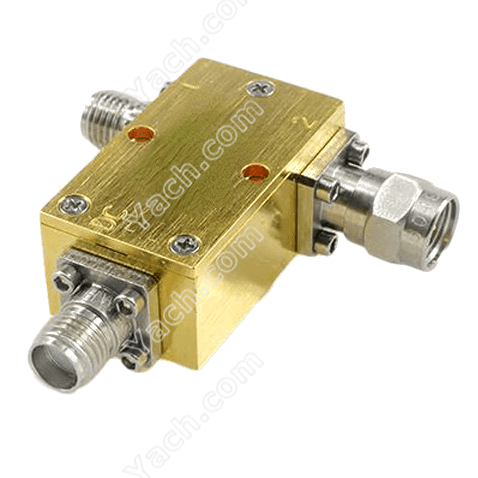

50 KHz to 18 GHz SMA Bias Tees, 500 mA & 200 VDC BT523630 bias tees (also called bias T) has a SMA connector RF port that is female gender. This Yach.com female SMA bias tees design is rated for a minimum frequency of 50 KHz and a maximum frequency of 18 GHz. This SMA bias tee / T is rated for a max. DC voltage of 200 Volts and a max. current of 500 mA. The BT523630 bias-T with SMA connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tees accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
*50 KHz to 18 GHz
*500 mA & 200 VDC
*VSWR＜2.0
*Insertion Loss＜1.8 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
50 KHz to 18 GHz SMA Bias Tees, 500 mA & 200 VDC BT523630 bias tees (also called bias T) has a SMA connector RF port that is female gender. This Yach.com female SMA bias tees design is rated for a minimum frequency of 50 KHz and a maximum frequency of 18 GHz. This SMA bias tee / T is rated for a max. DC voltage of 200 Volts and a max. current of 500 mA. The BT523630 bias-T with SMA connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tees accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：BT523630.pdf (点击右键可另存)
