Bias Tees BT523620
2022-05-09 13:12:01 点击：
❶Features:
*50 HKz to 67 GHz
*200 mA & 10VDC
*VSWR＜2.4
*Insertion Loss＜4.0 dB max.
*Isolation: 30dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:

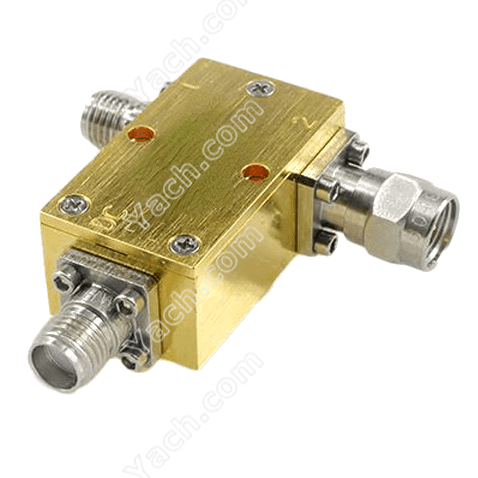

50 KHz to 67 GHz 1.85mm Bias Tee, 200 mA & 10 VDC BT523620 bias tee (also called bias T) has a 1.85mm connector RF port that is female gender. This Yach female 1.85mm bias tee design is rated for a minimum frequency of 50 KHz and a maximum frequency of 67 GHz. This 1.85mm bias tee / T is rated for a max. DC voltage of 10 Volts and a max. current of 200 mA. The BT523620 bias T with 1.85mm connector series for RF port is designed with a maximum VSWR of 2.4:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tee accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
*50 HKz to 67 GHz
*200 mA & 10VDC
*VSWR＜2.4
*Insertion Loss＜4.0 dB max.
*Isolation: 30dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
50 KHz to 67 GHz 1.85mm Bias Tee, 200 mA & 10 VDC BT523620 bias tee (also called bias T) has a 1.85mm connector RF port that is female gender. This Yach female 1.85mm bias tee design is rated for a minimum frequency of 50 KHz and a maximum frequency of 67 GHz. This 1.85mm bias tee / T is rated for a max. DC voltage of 10 Volts and a max. current of 200 mA. The BT523620 bias T with 1.85mm connector series for RF port is designed with a maximum VSWR of 2.4:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tee accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：BT523620.pdf (点击右键可另存)
