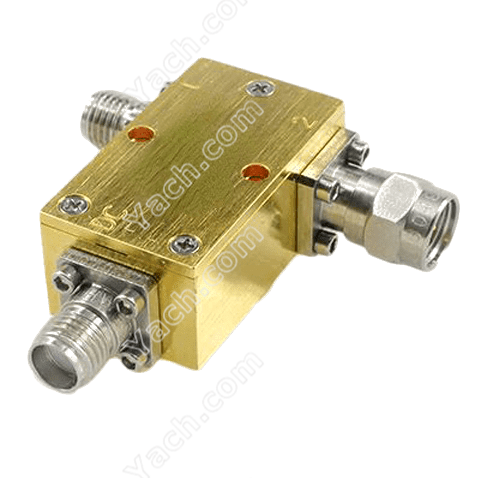

Bias Tees BT523304
2022-05-09 11:17:39 点击：
❶Features:
*450 MHz to 4 GHz
*3000 mA & 50 VDC
*VSWR＜2.0
*Insertion Loss＜1.0 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
450 MHz to 4 GHz N Bias Tees, 2000 mA & 100 VDC BT523626 bias tees (also called bias T) have a N connector RF port that is female gender. This Yach.com’s female N bias tees design is rated for a minimum frequency of 450 MHz and a maximum frequency of 4 GHz. This N bias tees / T are rated for a max. DC voltage of 50 Volts and a max. current of 3000 mA. The BT523304 bias T with N connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach.com’s RF bias tees accept customization. Common models are in stock, the fastest delivery on the same day. Welcome to your inquires!
*450 MHz to 4 GHz
*3000 mA & 50 VDC
*VSWR＜2.0
*Insertion Loss＜1.0 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
450 MHz to 4 GHz N Bias Tees, 2000 mA & 100 VDC BT523626 bias tees (also called bias T) have a N connector RF port that is female gender. This Yach.com’s female N bias tees design is rated for a minimum frequency of 450 MHz and a maximum frequency of 4 GHz. This N bias tees / T are rated for a max. DC voltage of 50 Volts and a max. current of 3000 mA. The BT523304 bias T with N connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach.com’s RF bias tees accept customization. Common models are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：BT523304.pdf (点击右键可另存)
