❶Features:*Ka Band RF Power Amplifier
*Frequency: 26 GHz to 40 GHz
*Gain: 30 dB typ
*VSWR: 2.0 typ
*P1dB: 31 dBm min
*Supply: 12 VDC, 2800 mA max
*Input/Output Connector: 2.92 Female
❷Application:
*Laboratory Applications
*R&D Labs
*Radar Systems
*Electronic Warfare
*Wireless Systems
*Test Instrumentation
*Communication Systems
*Power Amplifier
*RF Front Ends
*Low Noise Amplifiers
*Microwave Radio Systems
❸Description:

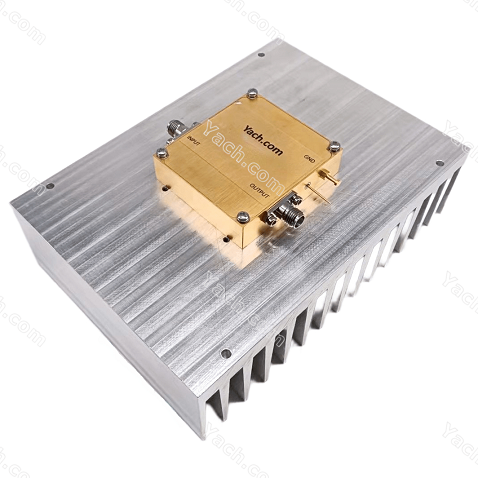

*PA8375251 is a broadband coaxial power amplifier, operating frequency in the 26 to 40 GHz. The amplifiers offer 30 dB typ signal gain, with the gain flatness of ±2.5 dB typ, the power amplifier has a VSWR of 2.0 typ. Yach.com's broadband power amplifier PA8375251 is rated P1dB 31 dBm min output power, this amplifier needs a supply 12 VDC, 2800 mA max, the amplifier has 2.92 female connectors for input/output ports. Yach.com's RF power amplifiers accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
文件下载：PA8375251.pdf (点击右键可另存)
